Product Dimensions 43.5"h x 30"w x 19.69"d

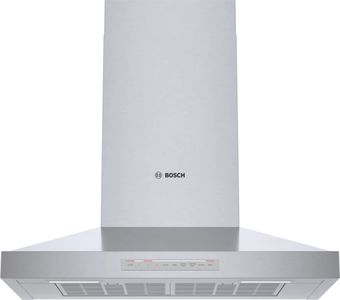

Wall mounted chimney hoods add style and sophistication to the kitchen and gives you greater freedom in your kitchen planning. Remotely monitor and control your chimney hood with the Home Connect™ app.Read More
Bosch May FLASH Sale
Save 10% on all eligible appliances. Ends 2025-05-14
Shop eligible itemsEligible Appliances
Save 10%
Remotely monitor and control your chimney hood with the Home Connect™ app.
Touch controls with LCD display.
600 CFM centrifugal integrated blower included.
Four speed touch controls with LCD display.
Dishwasher safe aluminum mesh filters.
Converts to recirculation mode with accessory kit (separate purchase required).
General Specs | |
| Width (in.) | 30 |
| Height (in.) | 43.5 |
| Duct Size (in.) | 8 |
| Depth (in.) | 19.69 |
| Collection | Série 500 |
| Color | Stainless Steel |
| Appliance Fit Width (cm.) | 76 |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 30 |
| Product Weight (lbs.) | 49 |
| Maximum CFM | 600 |
| Sones Rating | 4.56 - 9.9 |
| Width (cm) | 76.2 |
| Height (cm.) | 110.49 |
| Depth (cm.) | 50.01 |
| Product Weight (kg) | 22.22 |
| Voltage | 120 |
| Frequency | 60 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Convertible (Both) |
General Properties | |
| Home Connect™ (Wi-Fi Enabled) | Yes |
| Operating mode | Convertible: ducted / recirculating |
| Sones | 9.9 HS / 4.56 WS |
| Number of speed settings | 4-stage |
| Motor location | Integrated motor in hood chimney |
| Number of lights | 2 |
| Total power of the lamps (W) | 80 W |
| Damper included | Yes |
| Grease filter material | Aluminum |
| Grease filter type | Multilayer cassette |
Dimensions & Weight | |
| Overall appliance dimensions (width of canopy included) (HxWxD) (in.) | 25"–39 1/2" / 29"–43 1/2" x 36" x 19 11/16" |
| Height of the chimney (in.) | 19 9/16"–33 7/8" / 23 1/4"–42 9/16" |
